SR-125
High-Tech
Soilmec rigs are self-mounting, easily transportable and designed to giving the best drilling solutions.

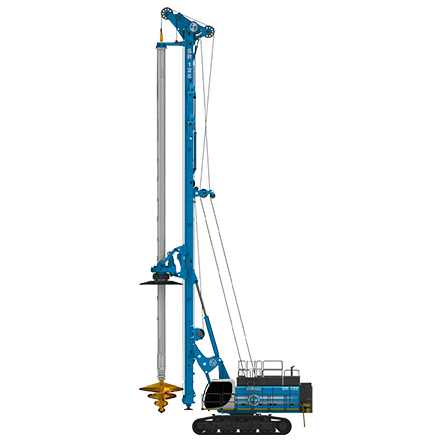

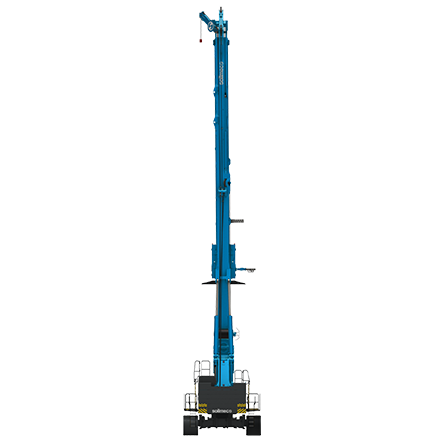

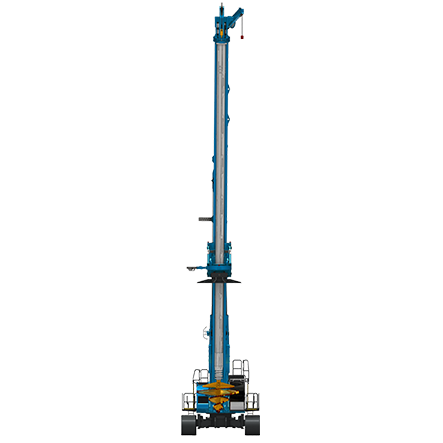

The hydraulic drilling rig SR-125 has been specially designed for suiting the following applications:
- LDP cased bore piles with casing driven directly by rotary head or optionally by casing oscillator powered by the base carrier itself;
- LDP deep uncased bored piles stabilized by drilling fluid or dry hole;
- CFA (Continuous Flight Auger) piles by means of long auger string;
- CAP (Cased Augered Piles) piles with double independent rotary system;
- DP (Displacement Piles) / TCT (traction compacting tool);
- TJ (Turbojet®) / TTJ (Twin Shaft Turbojet) – soil consolidation;
The SR-125 is equipped with the DRILLING MATE SYSTEM (DMS) on 12′ touch screen for monitoring and control of the rig performances and operating parameters.
Technical data
| Dato | Unità di misura | Valore |
|---|---|---|
| Diesel engine T3/T4 | kW | 470/470 |
| Max Torque | daNm | 435 |
| Weight | t | 128 |
| CCS - Cylinder Crowd System pull up/down | kN | 412/345 |
| Main winch | kN | 420 |
| Min. transport weight | t | 47 |
| WCS - Winch Crowd System pull up/down | kN | 540/540 |
LDP - LARGE DIAMETER PILE
| Dato | Unità di misura | Valore |
|---|---|---|
| Max depth (LDP) | m | 121 |
| Max Diameter (LDP) CCS/WCS | mm | 3500 |
CFA - CONTINUOUS FLIGHT AUGER
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (CFA) | mm | 1200 |
| Max depth (CFA) | m | 36 |
CAP/CSP - CASED AUGERED AND SECANT PILE
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (CAP/CSP) | mm | 1200 |
| Max pile depth (CAP/CSP) | m | 28,4 |
| Max cased depth (CAP/CSP) | m | 23 |
DP - DISPLACEMENT PILE
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (DP) | mm | 800 |
| Max TCT diameter (DP) | mm | 1000 |
| Max pile depth (DP) | m | 36 |
TJ - Turbojet
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (TJ) | mm | 1500 |
| Max depth (TJ) | m | 36 |
