SR-30 Eagle Upgraded
Evolution

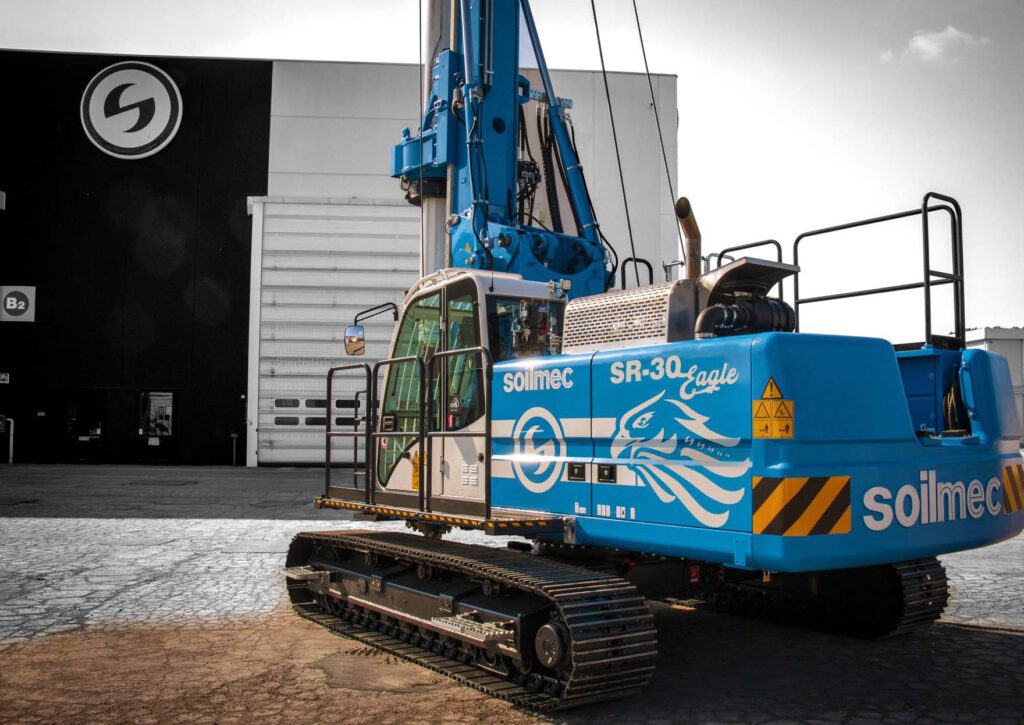

The SR-30 Eagle is the smallest model in Soilmec’s line-up of drilling rigs. Built with a lightweight design the rig features a high torque rotary head, powerful Diesel engine and the new segmental mast. The SR-30 Eagle is a modern machine equipped with several accessories, devices and the DMS 4.0 system to ensure the highest level of connectivity, accessibility, and safety.
Latest generation SM segmental mast
- The segmental mast allows for quick conversion of the rig for different applications.
- Removing the upper element, to quickly convert to the LHR setup.
- Add a rig rotary sleeve kit, auger cleaner and, at your choice, additional mast element for CFA applications.
If you wish to know more, click the buttons below!

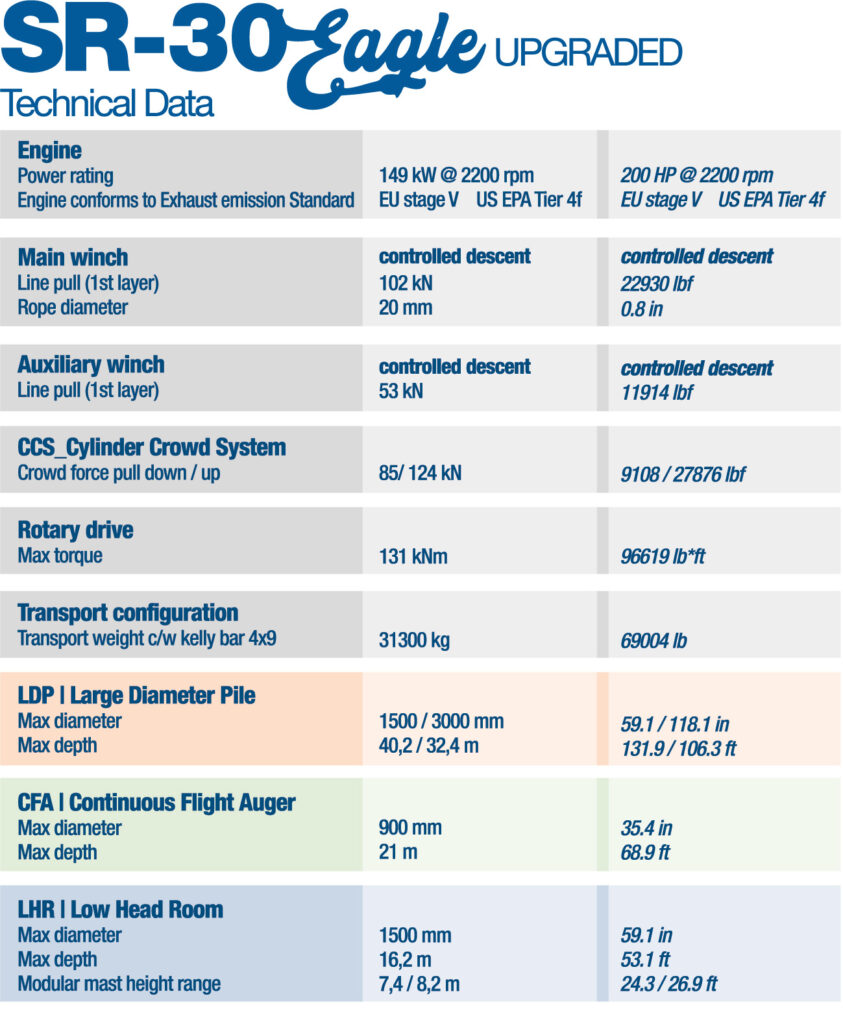

Technical data
| Dato | Unità di misura | Valore |
|---|---|---|
| Diesel engine T3/Stage V | kW | 149/149 |
| Weight without Kelly Bar | t | 27,7 |
| Max Torque | daNm | 131 |
| CCS - Cylinder Crowd System pull up/down | kN | 124/85 |
| Main winch | kN | 102 |
| Min. transport weight | t | 31,3 |
LDP - LARGE DIAMETER PILE
| Dato | Unità di misura | Valore |
|---|---|---|
| Max depth (LDP) | m | 37,7/47,5 |
| Max Diameter (LDP) CCS/WCS | mm | 1500/3000 |

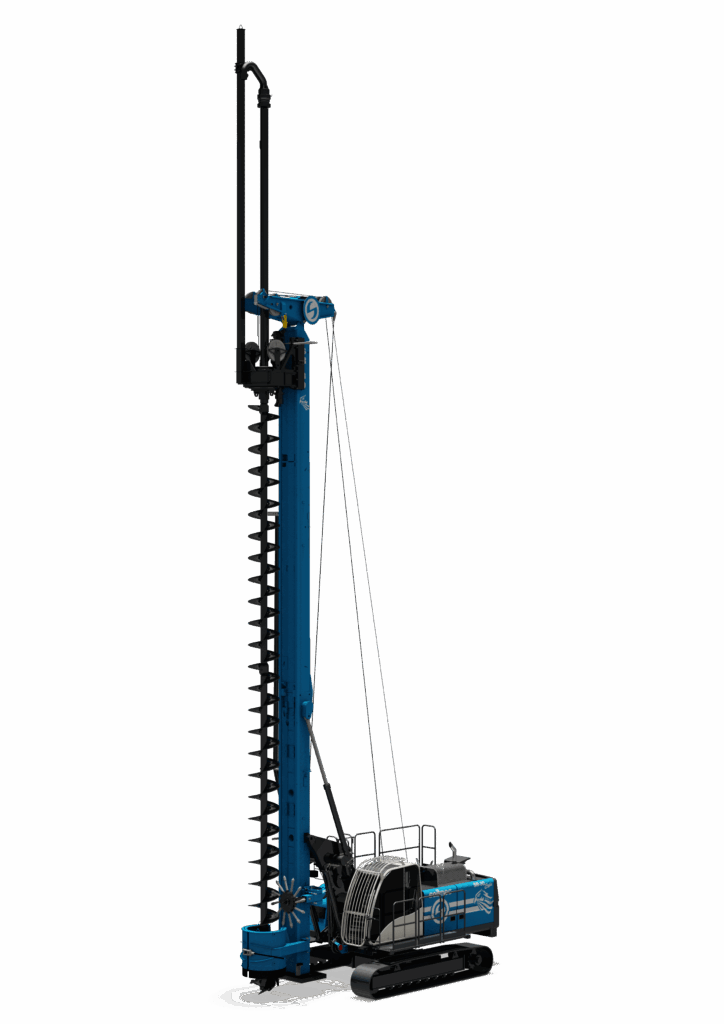

CFA - CONTINUOUS FLIGHT AUGER
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (CFA) | mm | 900 |
| Max depth (CFA) | m | 22 |
LHR - LOW HEAD ROOM
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (LHR) | mm | 1500 |
| Max depth (LHR) | m | 16.2 |
| Modular mast height range (LHR) | m | 7,4/8,2 |
