For over 30 years, Soilmec’s 30-ton class rigs have set the standard in ground engineering. Since the first R-312 rolled out in 1995, these agile yet powerful machines have conquered job sites across the globe—from the frozen landscapes of North America to the sands of Africa, from bustling cities to iconic challenges like the Leaning Tower of Pisa.
Today, after more than 1,500 units sold, we’re raising the bar once again.

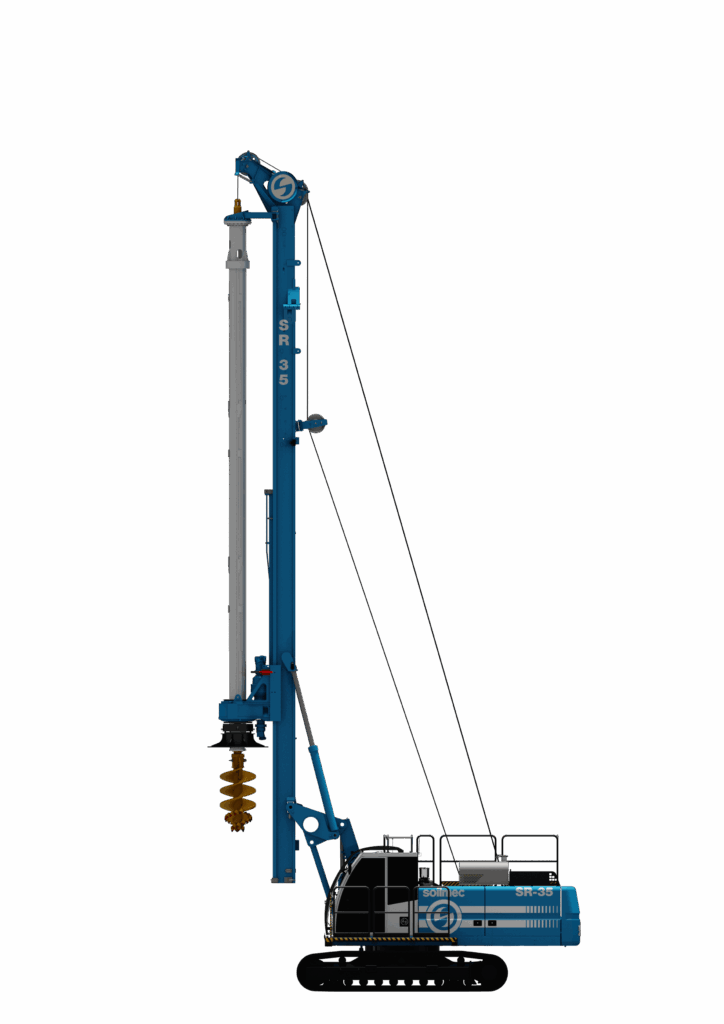

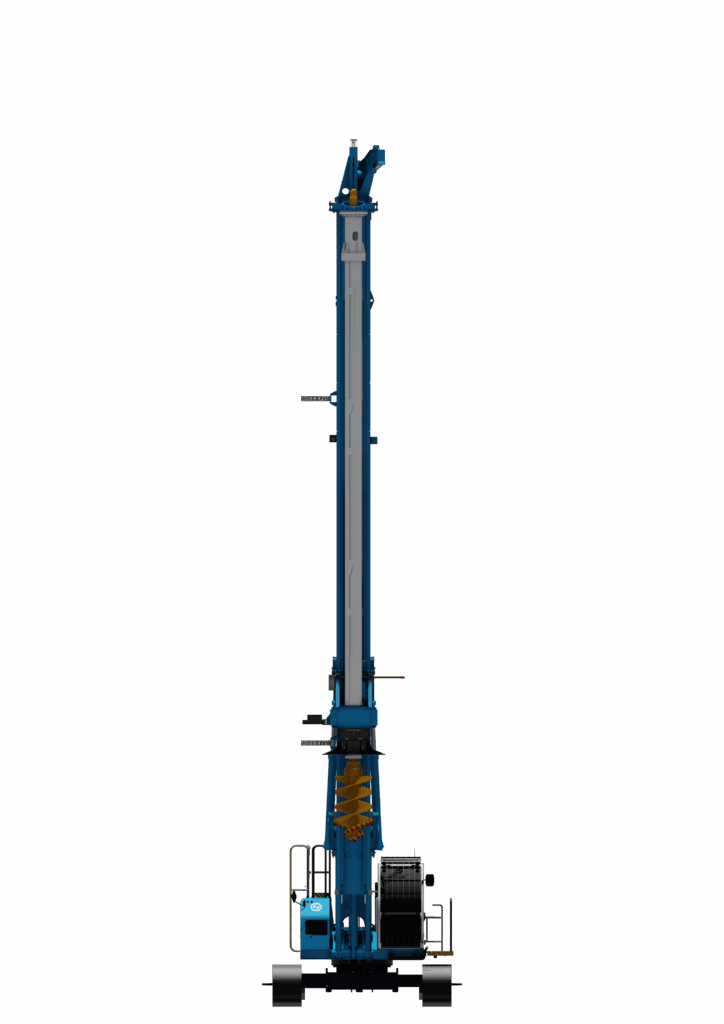

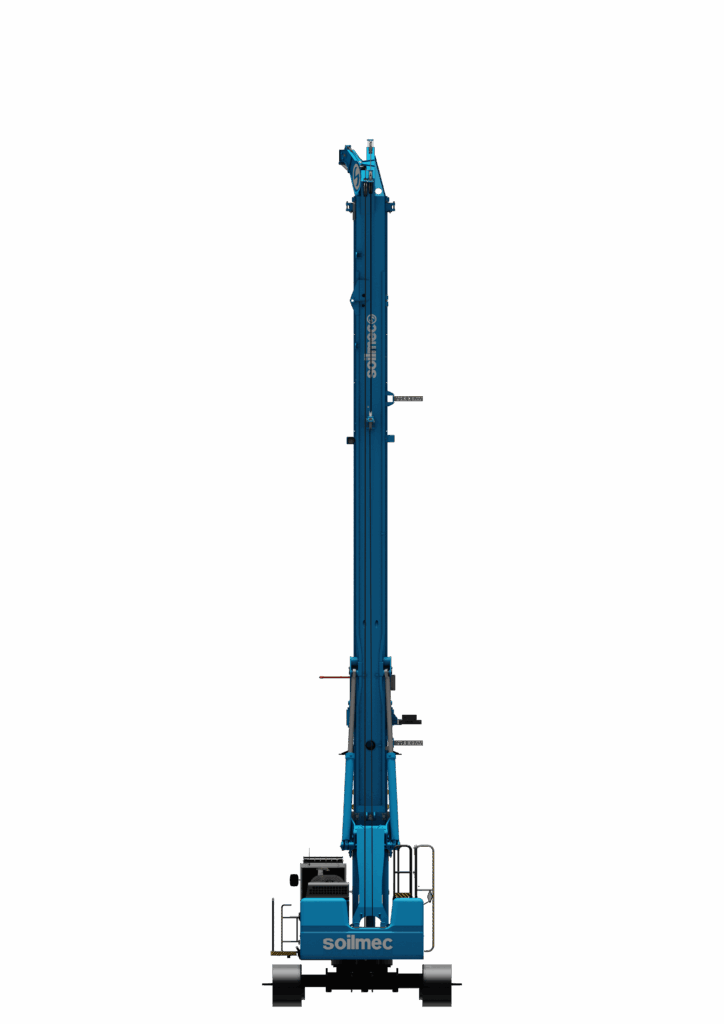

Introducing the SR-35 Blue Tech Plus.
Every detail is designed for those who want more performance with less consumption.
Fast, intuitive, and powerful, SR-35 Blue Tech Plus is the ultimate solution for specialists seeking agility and productivity without compromise.
Equipped with an intelligent hydraulic system and advanced software for seamless pump-distributor communication, SR-35 Blue Tech Plus delivers:
The future starts now. Are you ready to lead it?
With SR-35 Blue Tech Plus, your job site becomes smarter, cleaner, and more competitive.
Discover the difference today!
| Dato | Unità di misura | Valore |
|---|---|---|
| Diesel engine T3/Stage V | kW | 209/209 |
| Max Torque | daNm | 141 |
| Weight | t | 37 |
| CCS - Cylinder Crowd System pull up/down | kN | 124/102 |
| Main winch | kN | 140 |
| Min. transport weight | t | 37 c/w kelly |
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (LHR) | mm | 3000 |
| Max depth (LDP) | m | 63 |
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (CFA) | mm | 900 |
| Max depth (CFA) | m | 25 |
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (LHR) | mm | 3000 |
| Max depth (LHR) | m | 23.3 |
| Modular mast height range (LHR) | m | 7.5/8.5 |
