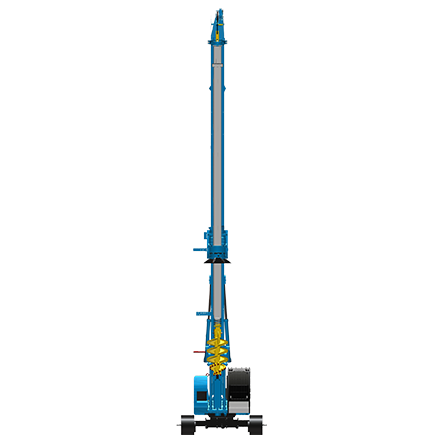

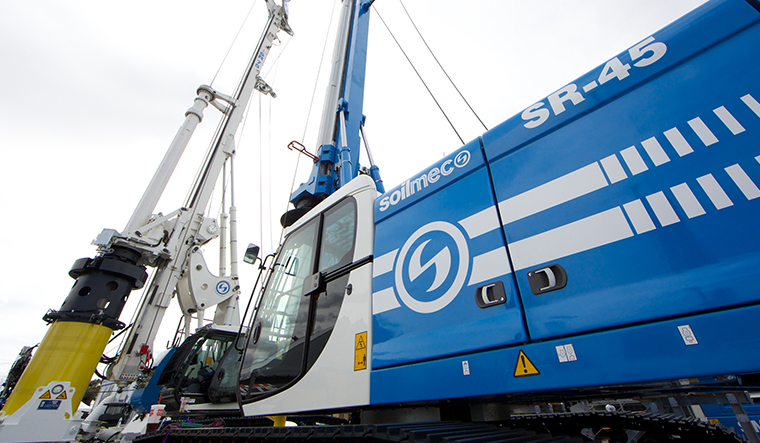

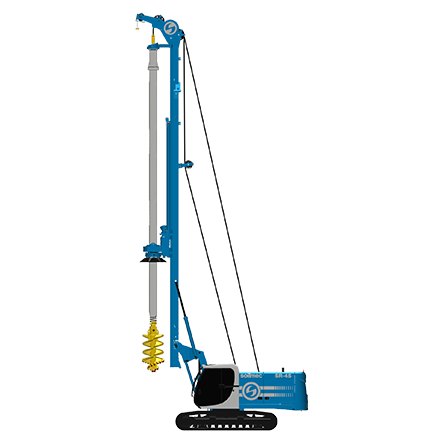

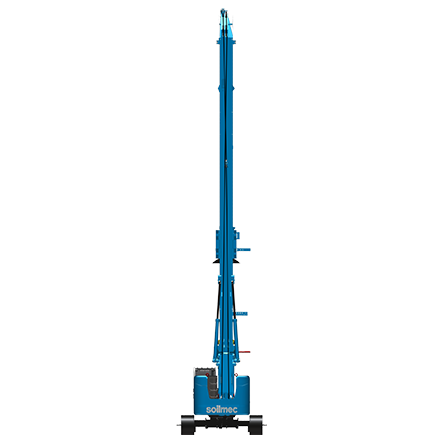

SR-45
Advanced
Advanced technology and flexibility
The SR-45 has become well known for its characteristics of dynamism and drilling capabilities combined with quick and efficient mobilization for rapid start-up on job sites.
In 2021 the SR-45 brand new model has been upgraded to the HD version which features the segmental mast boosting its versatility and Low Headroom operation capability, in addition to a monolithic HD mast with improved capacity.
Higher performance
- Enhanced depth in CFA version
- Increased extraction force
- New segmental mast
More efficient
- Optimized lines to the rotary for cutting power loss
- Diesel engine – Auto low idle control for fuel saving
- Electric system SM 2.0
Truly multipurpose
- 5 technologies: LDP, CFA, DP/TCT, TJ and DTH
- Many versions: WCS, CCS, Segmental Mast, LHR, Quick Change, 4-lines pull
Environment-friendly
- Complies with the most stringent emission rules
- Lower CO2 emissions
- Noise reduction
Proven ergonomics
Sliding door, fully adjustable pneumatic suspension seat, joysticks and keybords easy to use
Great visibility
Wide roof and front glass with protection grids, LED lights with anti-glare technology and CCTV camera system with dedicated 7” display
Most comfortable
Powerful HVAC system with recirculating air, USB port, locked glove boxes, a large compartment for placing helmet and jacket,cupholders and file folder
Always connected!
- DMS On Board 4.0
- DMS PC for a complete production analysis
- DMS Manager a cloud service for superior fleet supervision
Technical data
| Dato | Unità di misura | Valore |
|---|---|---|
| Diesel engine T3/Stage V | kW | 209/209 |
| Max Torque | daNm | 185 |
| Weight | t | 37-40 |
| CCS - Cylinder Crowd System pull up/down | kN | 207/140 |
| Main winch | kN | 165 |
| Min. transport weight | t | 41,7 c/w kelly |
| WCS - Winch Crowd System pull up/down | kN | 240/240 |
LDP - LARGE DIAMETER PILE
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (LHR) | mm | 3000 |
| Max depth (LDP) | m | 69,7 |
CFA - CONTINUOUS FLIGHT AUGER
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (CFA) | mm | 1000 |
| Max depth (CFA) | m | 28 |
DP - DISPLACEMENT PILE
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (DP) | mm | 350 |
| Max TCT diameter (DP) | mm | 400 |
| Max pile depth (DP) | m | 23 |
TJ - Turbojet
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (TJ) | mm | 1400 |
| Max depth (TJ) | m | 23 |
LHR - LOW HEAD ROOM
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (LHR) | mm | 3000 |
| Max depth (LHR) | m | 23.7 |
| Modular mast height range (LHR) | m | 8,4/9,45 |
